Quik-Latch Mini Pin Sizes

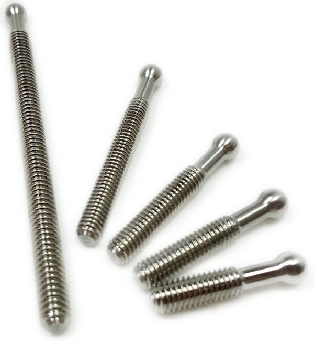

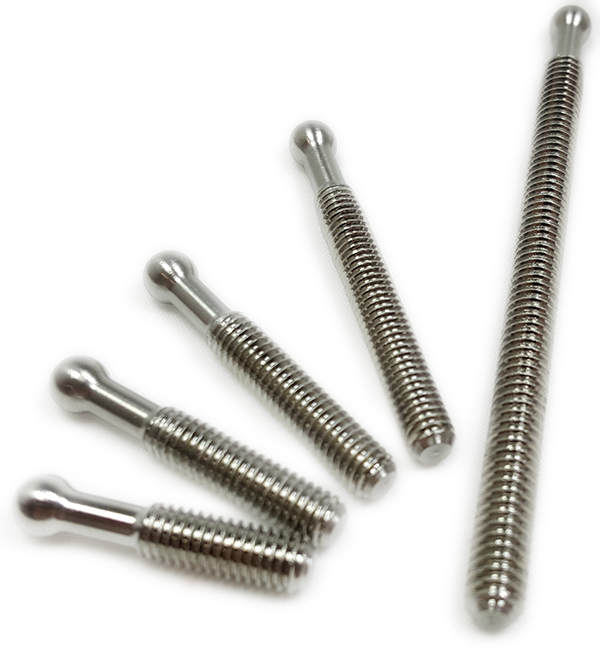

Quik-Latch offers an assortment of different pin sizes to fit whatever project you may need.  Listed below are the available sizes that are offered for the ‘Mini’ line of latches.

1/4" - 20 x 1.2"

M6 x 1.0 - 30mm

M8 x 1.25 - 54mm

5/16" x 18 - 2.1"

1/4" - 20 x 1.6"

M6 x 1.0 - 36mm

M8 x 1.25 - 100mm

5/16" x 18 - 4.0"

1/4" - 20 x 2.1"

M6 x 1.0 - 41mm



1/4" - 20 x 4.0"

M6 x 1.0 - 54mm



Available Sizes

1/4” Sizes

M6 Sizes

M8 Sizes

5/16” Sizes

For reference the standard pin  size used on the Mini latches is:

 1/4”- 20 x 2.1
